Z-45 RT Diesel Knuckle Boom Hire Brisbane

Diesel Knuckle Boom

The Genie Z-45/25J RT Diesel Knuckle Boom is the industry-standard solution for working at height on rough terrain. With 4WD performance, a working height of 16.1 m, and a horizontal outreach of 7.6 m, this diesel boom lift is designed for elevated access in complex outdoor environments. Available for hire in Brisbane, Gold Coast, and Ipswich, it delivers power, reach and safety for construction, maintenance, and industrial projects. High-risk work license required.

Key Information

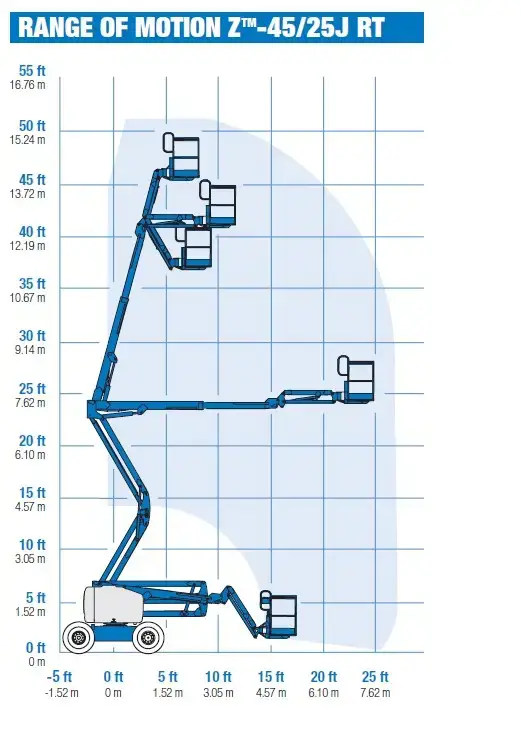

MAX WORKING HEIGHT 16.1 M
MAX PLATFORM HEIGHT 14.1 M
MAX HORIZONTAL REACH 7.6 M
UP AND OVER CLEARANCE 7.1 M
BASKET SIZE (LXW) 1.8x0.8 M
HEIGHT STOWED 2.11 M
WIDTH STOWED 2.29 M
LENGTH STOWED 6.83 M
TRANSPORT LENGTH 6.3 M
WEIGHT 7,167 KG
LIFT CAPACITY 227 KG
MAX. TYRE LOAD 3,266 KG
SPECIAL OPTIONS ANTI-CRUSH PROTECTION
NON MARKING TYRES
GENERATOR
Additional features include Rough terrain wheels with 4WD drive 180° basket rotation and jib articulation Full proportional control system for smooth movement Strong diesel engine with robust torque output
*The specifications showcased above are provided for reference and may vary with each machine model.
Not the right machine, we have more sizes available. View more...

Z-45/25J RT for Construction, Infrastructure & Terrain Work

This unit is ideal for demanding outdoor tasks requiring access over obstacles or in uneven terrain:

  • High-access construction and structural steel work
  • Civil infrastructure and bridge inspections
  • Outdoor building maintenance and façade work
  • Signage, lighting, and electrical installations
  • Tree trimming and vegetation clearing on slopes

Common Uses for this Diesel Knuckle Boom

This model is trusted by contractors and project managers across Queensland for:
Civil & Infrastructure: highway and bridge work, railway construction
Commercial Projects: steel frame assembly, cladding, roofing
Maintenance Contracts: stadiums, airports, industrial zones
Energy Sector: wind turbines, power plants, utilities access
Landscaping & Councils: elevated vegetation management, tall tree trimming
It’s built for elevated work in large-scale, high-clearance, outdoor environments.

Safety & Compliance: Built to Australian Standards

Every Genie Z-45/25J RT at All Access Hire is serviced, certified, and delivered in compliance with national and state safety regulations:

  • Compliant with AS 1418.10 and other MEWP Australian Standards
  • Requires HRWL – Boom Type EWP licence (if over 11m)
  • Units include anti-crush systems, alarms, and emergency lowering
  • Pre-hire inspections and ongoing fleet servicing
  • Emission-compliant diesel engine for industrial environments

We guarantee every machine arrives site-ready, inspected, and in full compliance with WHS requirements.

Why hire with All Access Hire?

All Access Hire is a 100% Australian-owned access specialist, servicing construction, industrial and maintenance sectors across Queensland.

With over 40,000 successful hires, our reputation is built on:

  • Expert equipment advice
  • Fast turnaround
    Flexible hire terms
  • Reliable gear, always ready to work

Request a Quote Today

Need a high-performance knuckle boom for a large-scale project? The Z-45/25J RT is available now. Delivery across Brisbane, Gold Coast and Ipswich High-clearance and extended outreach performance Includes safety features and compliance documentation Request a quote now or speak with our access specialists.

Request a Quote

This field is for validation purposes and should be left unchanged.

Frequently Asked Questions (FAQs)

It offers a working height of 16.1 m, platform height of 14.1 m, and a horizontal reach of 7.6 m, with 7.1 m up-and-over clearance.
A High-Risk Work Licence – Boom Type (WP) is required as the platform height exceeds 11 m. Operators must meet WHS licensing rules.
This model is diesel-powered, so it’s recommended for outdoor or well-ventilated environments only. Not suitable for enclosed indoor use.
Stowed: 2.11 m (height) × 2.29 m (width) × 6.83 m (length), with a transport weight of 7,167 kg. Suitable for standard flatbed delivery.
Yes, the 4WD system, high ground clearance and rough terrain tyres allow the Z-45/25J RT to perform on slopes and uneven ground reliably.
Yes, we offer fast delivery across Brisbane, Gold Coast, Ipswich, and surrounding regions. Same-day delivery may be available.
