Z34 Electric Knuckle Boom Hire Brisbane, Gold Coast and Southeast Queensland

Electric Knuckle Boom

The Z34 Electric Knuckle Boom provides precise vertical and horizontal access for indoor and low-emission worksites across Brisbane, Gold Coast and Southeast Queensland. With a maximum working height of 12.52 metres and horizontal outreach of 6.78 metres, it is well suited to maintenance, installation and fitout work where operators need to reach above or around obstacles.

Its narrow 1.47 metre stowed width, zero tail swing design and non-marking tyres make the Z34 a practical option for commercial buildings, warehouses, shopping centres and other sites with restricted access. The fully electric drive supports quiet, fume-free operation in enclosed or noise-sensitive environments.

Key Information

Max working height 12.52 m
Max platform height 10.52 m

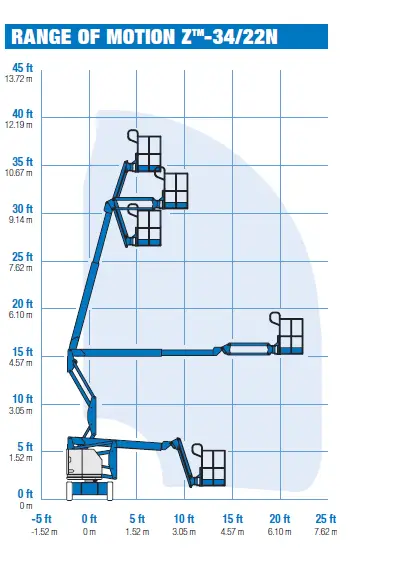

Max horizontal reach 6.78 m
Up and over clearance 4.62 m
Basket size (LxW) 1.42 m x 0.76 m
Height stowed 2.00 m
Width stowed 1.47 m
Length stowed 5.72 m
Transport length 4.19 m
Weight 5,171 kg
Lift capacity 227 kg
Max tyre load Not provided
Special options Non-marking tyres, zero tail swing, self-levelling platform
*The specifications showcased above are provided for reference and may vary with each machine model.
Not the right machine, we have more sizes available. View more...

Z34 Electric Boom Applications

Designed for controlled access in indoor and space-restricted environments, the Z34 Electric Knuckle Boom is suitable for:

  • Electrical installations, cable work and lighting maintenance
  • HVAC servicing and mechanical installations
  • Ceiling repairs and internal building maintenance
  • Signage installation in shopping centres and commercial properties
  • Office, retail and warehouse fitouts
  • Facility maintenance in hospitals, education facilities and public buildings
  • Access work around shelving, machinery and fixed structures
  • Tasks requiring horizontal outreach above obstacles or equipment

The articulated boom configuration gives operators the ability to work above and around obstructions that may be difficult to access with a vertical lift or conventional scissor lift.

With 6.78 metres of horizontal reach and an up-and-over clearance of 4.62 metres, the machine can position the platform beyond shelving, production equipment, internal walls and other fixed obstacles.

Its narrow overall width also supports movement through confined work areas where larger diesel knuckle booms may not be suitable.

Benefits of Hiring the Z34 Electric Knuckle Boom

  • 52 m maximum working height for elevated installation and maintenance tasks
  • 78 m horizontal reach for accessing areas above and beyond obstacles
  • Compact 47 m stowed width for narrow access routes
  • Zero tail swing for greater control near walls, shelving and structures
  • Quiet electric operation for indoor and noise-sensitive projects
  • No exhaust emissions at the point of operation
  • Solid non-marking tyres suitable for finished indoor surfaces
  • 227 kg platform capacity for operators, tools and materials
  • Self-levelling platform for stable positioning throughout the lift cycle
  • Proportional controls for smooth and accurate platform movement
  • Hydraulic platform rotation for improved access positioning
  • 2WD electric drive for reliable travel across suitable prepared surfaces
  • Compliant with AS 1418.10 requirements for boom-type elevating work platforms

The Z34 is particularly useful where both height and outreach are required. Its articulated boom can reach over equipment and fixed structures while the compact base remains positioned in a practical operating area.

For projects requiring a smaller indoor unit, consider the Z30 Electric Boom. For higher outdoor access and rougher ground conditions, explore the Z60 Diesel Knuckle Boom or speak with our team about the most suitable boom lift for your site.

Why hire with All Access Hire?

All Access Hire is a 100% Australian-owned access specialist, servicing construction, industrial and maintenance sectors across Queensland.

With over 40,000 successful hires, our reputation is built on:

  • Expert equipment advice
  • Fast turnaround
    Flexible hire terms
  • Reliable gear, always ready to work

Request a Quote!

Get a fast quote and practical equipment recommendation for the Z34 Electric Knuckle Boom. The Z34 is available for suitable projects throughout Brisbane, the Gold Coast and Southeast Queensland, with flexible hire periods and delivery options available. Contact All Access Hire with your required working height, project location, hire duration and site access details. Our team will confirm availability and help determine whether the Z34 is the right machine for the job.

Request a Quote

This field is for validation purposes and should be left unchanged.

Z34 Electric Knuckle Boom FAQs

The Z34 Electric Knuckle Boom is a compact articulating boom lift designed to provide vertical and horizontal access in indoor and space-restricted work areas. Its jointed boom allows operators to reach up and over obstacles that may be difficult to access with a scissor lift or vertical mast lift. The Z34 is commonly suited to commercial maintenance, electrical work, HVAC servicing, signage installation and internal fitout projects where quiet electric operation and accurate platform positioning are required.
The Z34 Electric Knuckle Boom has a maximum working height of 12.52 metres and a maximum platform height of 10.52 metres. This working range makes it suitable for lighting maintenance, ceiling repairs, electrical installations, mechanical servicing and other elevated tasks in commercial and industrial buildings.
The Z34 provides a maximum horizontal reach of 6.78 metres and an up-and-over clearance of 4.62 metres. This allows the platform to reach beyond shelving, machinery, internal walls and fixed building services while the base remains positioned in an accessible operating area.
Hire a Z34 Electric Knuckle Boom when the work area requires operators to reach above or around an obstacle, rather than travelling directly upwards. A scissor lift is generally suited to vertical access beneath the work area. The articulated boom on the Z34 provides horizontal outreach and up-and-over access, making it more practical for tasks above machinery, shelving, partitions or fixed structures.
The Z34 Electric Knuckle Boom is well suited to many indoor projects because it uses an electric drive system, operates without exhaust emissions at the point of use and is fitted with solid non-marking tyres. It can be considered for shopping centres, warehouses, offices, hospitals, education facilities and other commercial environments. Floor capacity, access dimensions and site conditions should always be assessed before delivery and operation.
The Z34 has a stowed width of 1.47 metres, a stowed height of 2.00 metres and a zero tail swing design, making it suitable for many restricted access areas. Before hiring the machine, measure doorways, corridors, turning spaces and overhead clearances along the complete access route. The operating area must also provide enough room for safe boom movement.
The Z34 Electric Knuckle Boom has a maximum lift capacity of 227 kilograms. This capacity includes the combined weight of the operator, tools, equipment and materials carried in the platform. The rated platform capacity must not be exceeded during operation.
The Z34 Electric Knuckle Boom is best suited to elevated work that requires both vertical access and horizontal outreach in an indoor or space-restricted environment. Common applications include: •Electrical installations and lighting maintenance •HVAC servicing and mechanical work •Ceiling inspections and repairs •Commercial office and retail fitouts •Signage installation •Warehouse and facility maintenance •Access above shelving, equipment and fixed structures Its compact width and articulated boom configuration make it particularly useful where direct vertical access is not possible.
The Z34 is fitted with solid non-marking tyres, which can help protect suitable finished indoor surfaces from tyre marks. However, non-marking tyres do not confirm that every floor can support the machine. The Z34 weighs approximately 5,171 kilograms, so the site manager should verify floor loading, surface condition and any floor protection requirements before use
The Z34 may be suitable when your project requires a working height of up to 12.52 metres, horizontal reach of up to 6.78 metres and access through spaces at least 1.47 metres wide. Before hiring, consider: •Required working height and outreach •Available access width and height •Floor loading capacity •Indoor or outdoor operating conditions •Obstacles between the machine and work area •Weight of operators, tools and materials •Space available for safe boom movement All Access Hire can review these requirements and recommend the most appropriate access equipment for the job.
The Z34 Electric Knuckle Boom is available for hire through All Access Hire for suitable projects across Brisbane, the Gold Coast and Southeast Queensland. Provide the project location, required hire dates, working height, access dimensions and expected site conditions when requesting a quote. This information helps the team confirm availability and determine whether the Z34 is the right machine for the work.
