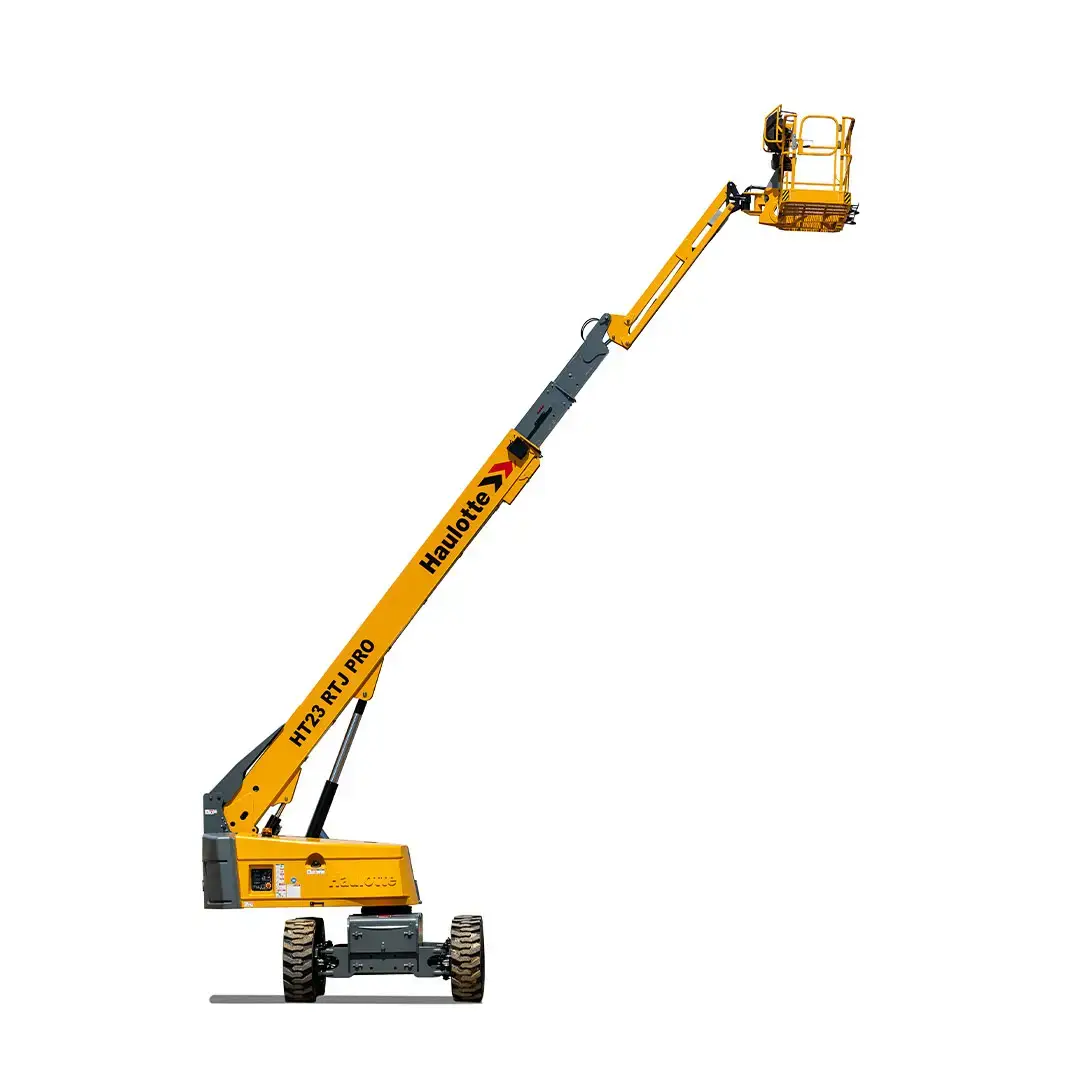

Haulotte HT23 RTJ PRO Boom Lift Hire for Demanding Outdoor Projects

Straight Boom

Tackle challenging high-reach jobs with the advanced Haulotte HT23 RTJ boom lifts, available in two configurations: HT23 RTJ O (2WS) and HT23 RTJ PRO (4WS). Hire across Brisbane, the Gold Coast and Ipswich with All Access Hire. These rough terrain telescopic lifts are engineered to deliver power, reach and operator safety for demanding industrial and infrastructure projects.

Key Information

MAX WORKING HEIGHT 22.5 M
MAX PLATFORM HEIGHT 20.5 M

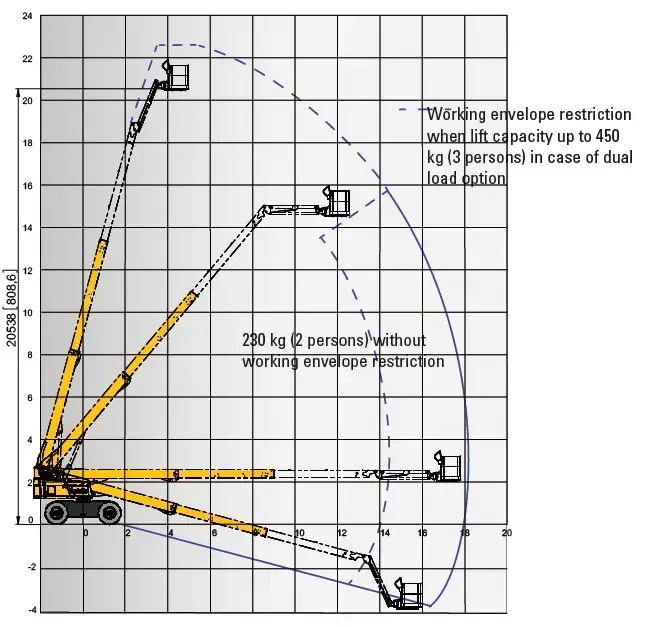

MAX HORIZONTAL REACH 18.3 M
BASKET SIZE (LXW) 2.4x0.9 M
HEIGHT STOWED 2.7 M
WIDTH STOWED 2.47 M
LENGTH STOWED 10.4 M
TRANSPORT LENGTH 7.8 M
WEIGHT 13,400 KG
LIFT CAPACITY 230/450 KG
SPECIAL OPTIONS ANTI-CRUSH PROTECTION
NON MARKING TYRES
GENERATOR
EXTRA LIFT CAPACITY
*The specifications showcased above are provided for reference and may vary with each machine model.
Not the right machine, we have more sizes available. View more...

Built for Safety and Versatility



Both variants come with safety systems and smart diagnostics:

  • Haulotte ACTIV’Shield Bar PRO™ (standard on PRO version)
  • ACTIV’Screen onboard diagnostics
  • Automatic differential lock
  • Oscillating axle for terrain adjustment
  • Fast lift speed: full height in 56 seconds
  • Emergency descent and audible alarms
  • Proportional controls for smooth movement
  • Prepared for platform power 110/230V
Why Hire HT23 RTJ Lifts from All Access Hire
Both 2WS and 4WS HT23 RTJ variants to suit site needs
Coverage across Brisbane, Gold Coast and Ipswich
Fully inspected, safety-certified equipment
Flexible hire periods, same-day availability
Optional extras like non-marking tyres and platform power
Support from a team with over 10 years of access hire experience

Ideal Use Cases for the HT23 RTJ Series

These boom lifts suit:

  • Steel and façade installation at height
  • Work in mining, utilities and energy
  • Telecommunications maintenance
  • Elevated electrical or HVAC installations
  • Sites with uneven or open outdoor terrain

Why hire with All Access Hire?

All Access Hire is a 100% Australian-owned access specialist, servicing construction, industrial and maintenance sectors across Queensland.

With over 40,000 successful hires, our reputation is built on:

  • Expert equipment advice
  • Fast turnaround
    Flexible hire terms
  • Reliable gear, always ready to work

Book Your Haulotte HT23 RTJ O or HT23 RTJ PRO Today

Whether you need the agile 2WS version or the rugged 4WS PRO model, All Access Hire has the right equipment, advice and support to help your project succeed. Call 1800 255 222 or request your custom quote today. We’re here to help.

Request a Quote

This field is for validation purposes and should be left unchanged.

Frequently Asked Questions | HT23 RTJ PRO and RTJ O

The HT23 RTJ O offers 2-wheel steering, while the HT23 RTJ PRO includes 4-wheel steer, enhanced load capacity (up to 450 kg), and extra stability features for complex terrain.
Both versions provide a maximum working height of 22.5 metres and horizontal outreach of 18.3 metres.
The HT23 RTJ PRO is built for rough terrain with 4WD, oscillating axles and differential lock, offering greater performance on uneven ground.
Operators need a Yellow Card or a High Risk Work Licence (WP class) depending on lift height and site requirements.
Yes. Both models are prepared for platform power (110V/230V), allowing you to run electric tools safely at height.
The HT23 RTJ O weighs 13,320 kg and the HT23 RTJ PRO 13,400 kg.
