TZ34 Trailer Boom

Trailer Units

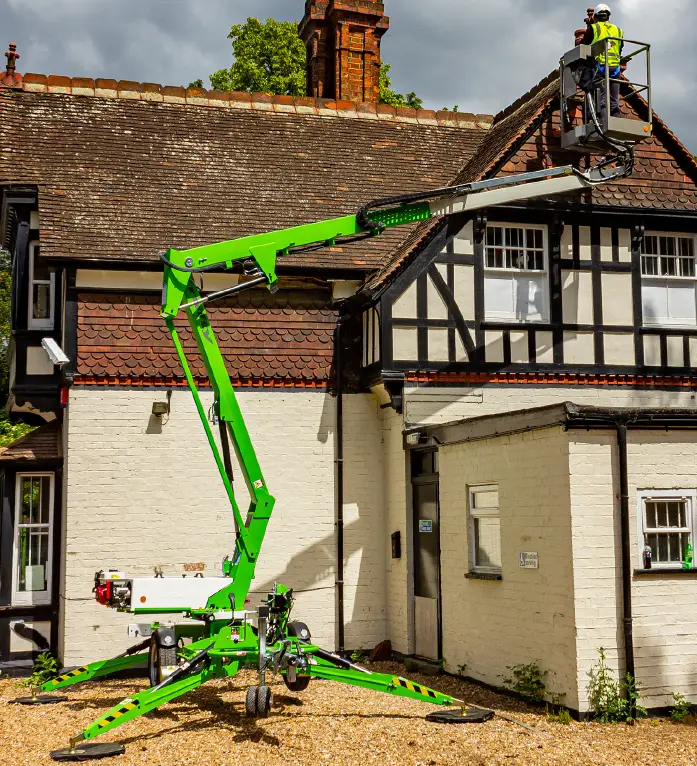

With an exceptional working envelope and intuitive controls, this cherry picker empowers operators to efficiently access elevated work areas. Featuring a rugged yet lightweight design suitable for various surfaces, and a self-leveling platform for when the ground is uneven, this machine sets a new standard for performance in accessing elevated work areas.

Key Information

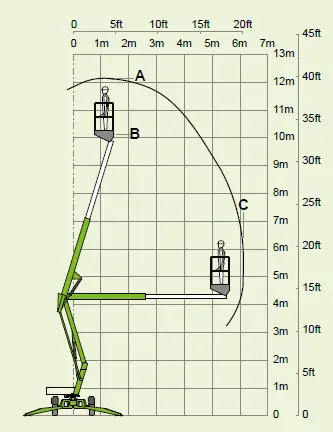

MAX WORKING HEIGHT 12.36 M
MAX PLATFORM HEIGHT 10.36 M
MAX HORIZONTAL REACH 5.59 M
UP AND OVER CLEARANCE 4.9 M
BASKET SIZE (LXW) 0.68 X 1.12 M

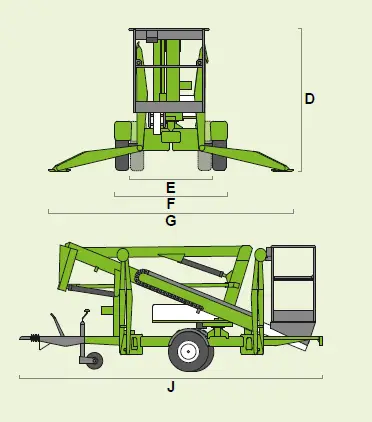

HEIGHT STOWED 1.94 M
WIDTH STOWED 1.45 M
LENGTH STOWED 5.5 M
WEIGHT 1,431 KG
LIFT CAPACITY 227 KG
*The specifications showcased above are provided for reference and may vary with each machine model.
Not the right machine, we have more sizes available. View more...
